TBAS Directional Orientation Test: What to Expect & How to Prepare

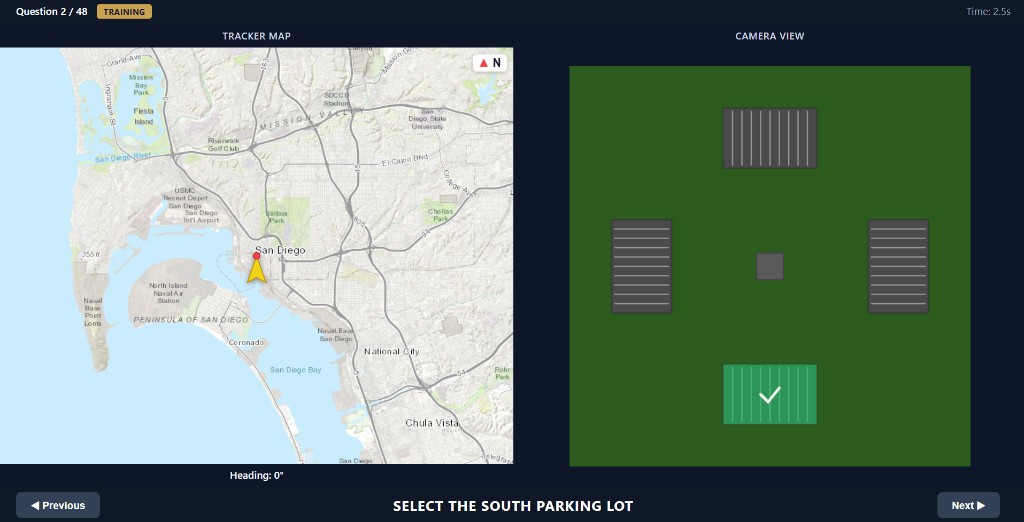

Directional Orientation practice screen with map on the left and parking lot camera view on the right

Directional Orientation interface: map heading on the left, target selection on the right

How the Directional Orientation Test Works

The screen is split into two parts. On the left, you see a map with a UAV indicator (yellow arrow + red point) showing the aircraft heading. On the right, you see a camera view with four possible parking-lot targets arranged either in a cross layout (cardinal) or a diamond layout (45-degree orientation).

Each question asks you to select one cardinal direction target: North, East, South, or West. You must answer from the pilot perspective (the UAV nose is your forward direction), not from the static map perspective.

Time is critical. This subtest is not only about getting answers right. You must also answer quickly and consistently under pressure. Slow but correct responses reduce your effective performance; fast and correct responses maximize your result.

In Directional Orientation, speed can be as important as accuracy. The faster you identify the correct target, the stronger your overall performance tends to be. In practical terms, this means you should train to become both reliable and quick, because correct but delayed answers generally have less impact than correct answers made with confident timing.

1) Decode Heading Fast

Read the UAV heading immediately. Determine if the view is cardinal-facing (cross target geometry) or 45-degree-facing (diamond target geometry).

2) Mentally Rotate Perspective

Switch to pilot viewpoint. Ask: “From where I’m facing now, where is North/East/South/West relative to me?”

3) Select and Commit

Click the matching parking lot quickly. Overthinking costs time and reduces score potential, even with correct answers.

Example 1 — Cardinal Heading (0°)

When heading is cardinal (0°, 90°, 180°, 270°), targets are in cross layout. Here, selecting South means choosing the bottom lot from pilot perspective.

Example 2 — Cardinal Heading (180°)

With heading 180°, your forward points South. Asking for South means selecting the top lot from pilot perspective.

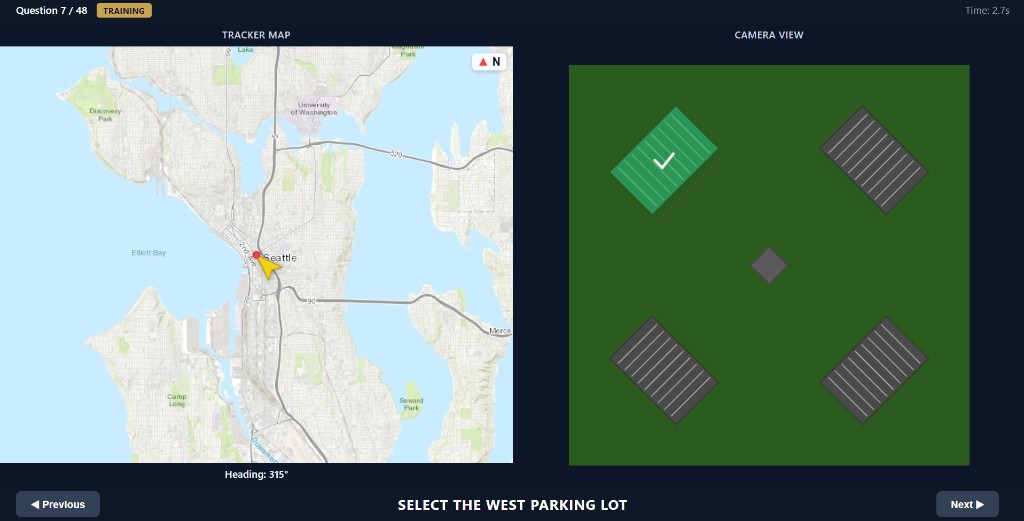

Example 3 — Diagonal Heading (315°)

When heading is diagonal (45°, 135°, 225°, 315°), targets are in diamond layout. Here, West aligns with the top-left lot.

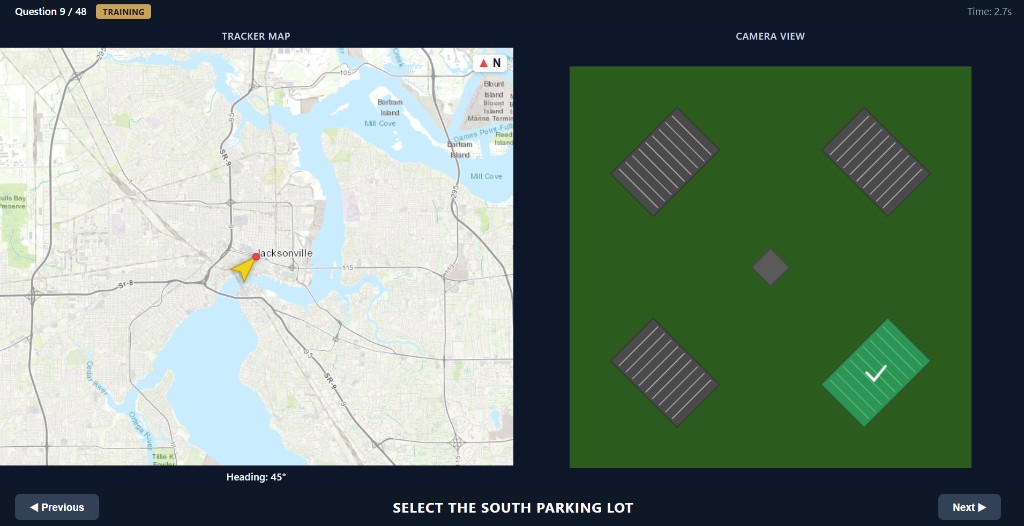

Example 4 — Diagonal Heading (45°)

At 45°, South maps to the bottom-right lot in the diamond arrangement.

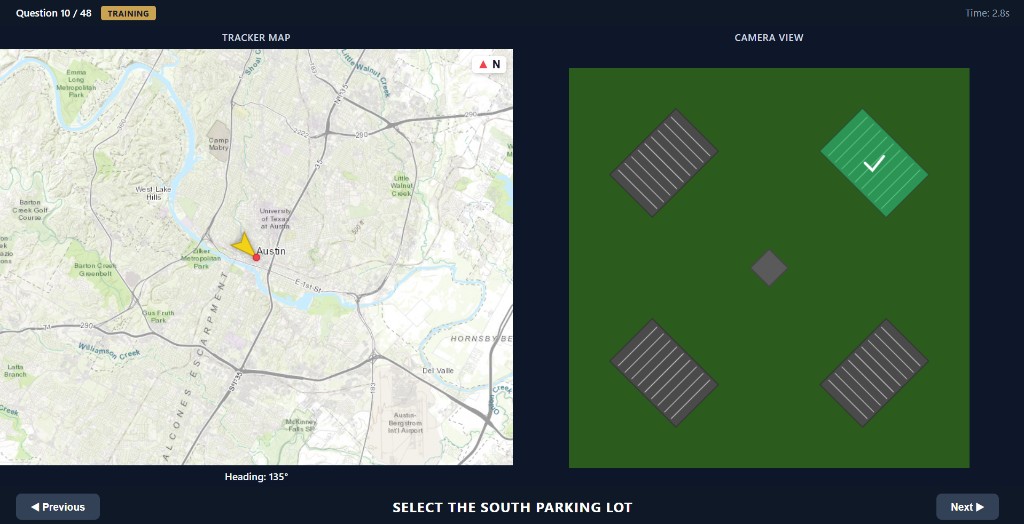

Example 5 — Diagonal Heading (135°)

At 135°, South maps to the top-right lot. Fast mental rotation is the key skill here.

Build an Instant Rule for Layout Recognition

Cardinal heading (0/90/180/270) = cross layout. Diagonal heading (45/135/225/315) = diamond layout. This one rule removes hesitation instantly.

Anchor With “Forward” Before Anything Else

Always set forward from UAV heading first. Then map requested direction relative to forward. This prevents left-right inversion mistakes.

Train for Speed, Not Only Accuracy

Because score is time-weighted, a slower correct answer can be worth significantly less than a fast correct answer. Practice with strict response-time targets.

Use a Stable Mental Sequence

Repeat the same internal loop every question: Heading → Layout → Requested direction → Click. Fixed routines reduce cognitive load.

Avoid Over-Reacting After Errors

One wrong answer should not slow the next three. Reset immediately. TBAS rewards consistency under pressure more than perfection on isolated items.

It measures spatial orientation under time pressure: reading heading, rotating perspective mentally, and selecting the correct relative target quickly.

In operational aviation, delayed decisions can be as dangerous as wrong decisions. This subtest reflects that reality by rewarding fast, correct processing.

Mixing map orientation with pilot orientation. Always answer from the UAV/pilot viewpoint, not from static north-up map intuition.

Use repeated short sessions with a speed goal. Track both correctness and response time. Build automatic recognition of heading-to-layout mapping.
